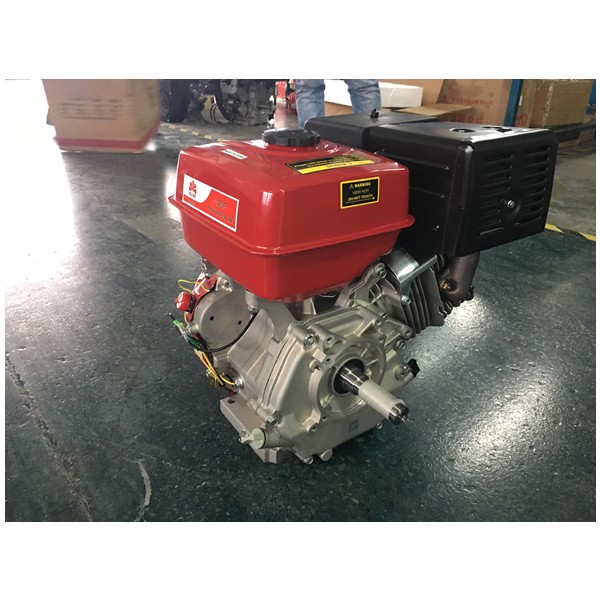

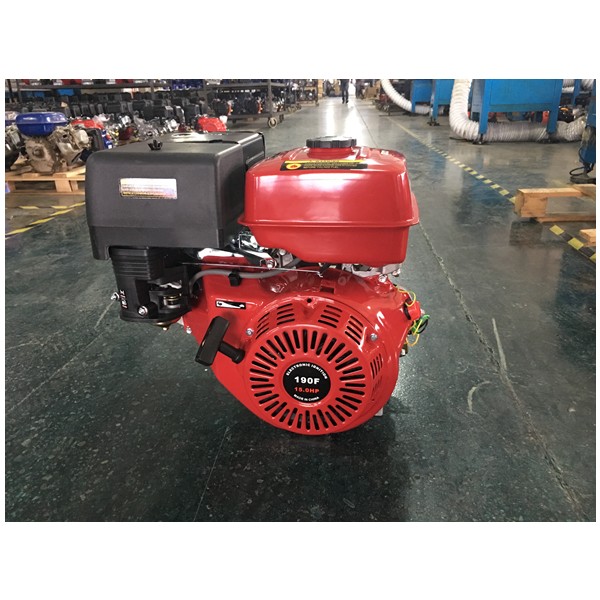

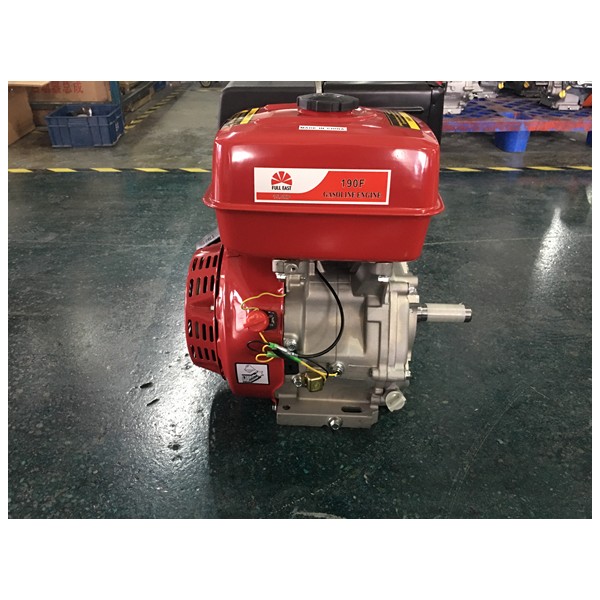

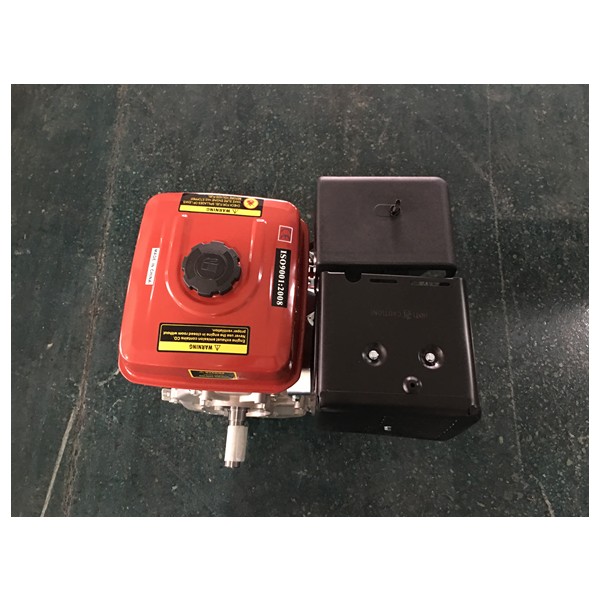

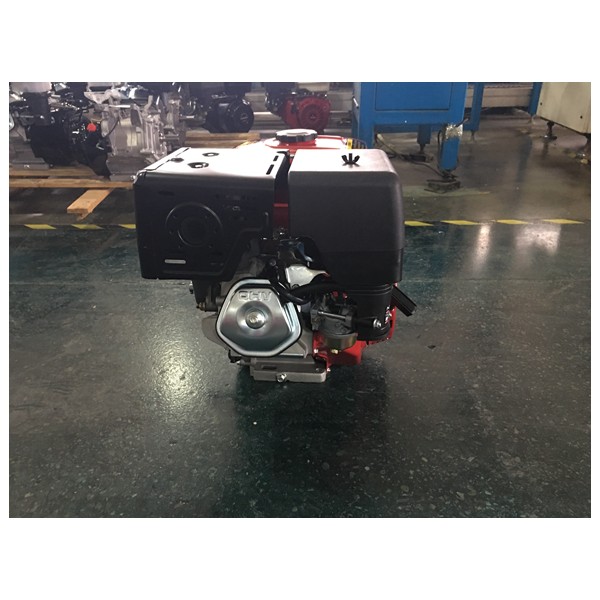

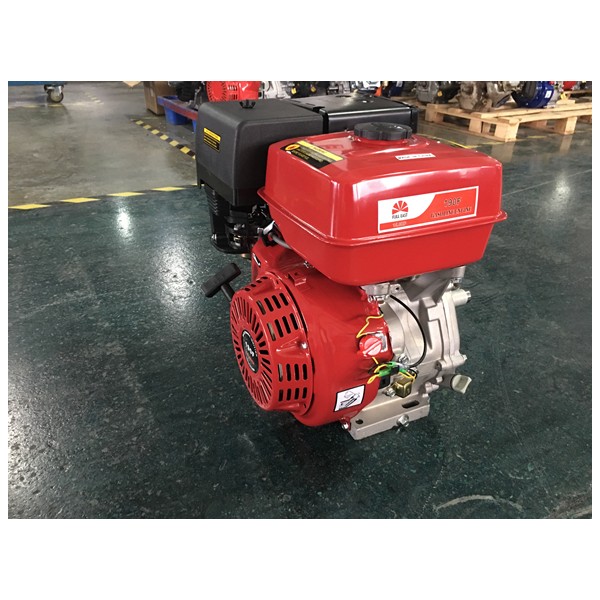

15HP Gasoline Engine
- Model: 190F
- Power: 15HP
- Product description: ♦ OHV leads to the lower fuel consumption. ♦ Oil alert automatically shut off the engine.
Product introduction
| 4 stroke Air cooled gasoline engine | ||
| Model | 190F | |
| Gasoline Engine | Low oil protector | yes |
| Rated output(HP) | 15HP | |
| Bore*stroke(mm*mm) | 90*66 | |
| Fuel tank capacity(L) | 6.5 | |
| Lube oil capacity(L) | 1.1 | |
| Governor system | All-speed type,Mechanical Governor | |
| Gasoline engine type | air cooled,4 stroke,OHV 25.Inclined single cylinder | |
| Compression ratio | 8.0:1 | |
| Displacement (cc) | 420 | |
| Fuel Consumption(g/Kwh) | 325 | |
| Spark Plug | F6TC | |
| Lube oil system | Splash type | |
| Ignition system | Non-contact transistorize ignition(TCL) | |
|
Other Information |
N.W/G.W(KG) | 31.5/33.5 |
| Specification:(mm) | 535*455*500 | |
| packing: | CARTON | |
| Quantity for 20ft:(set) | 200SETS | |
| Warranty time: | One year | |
