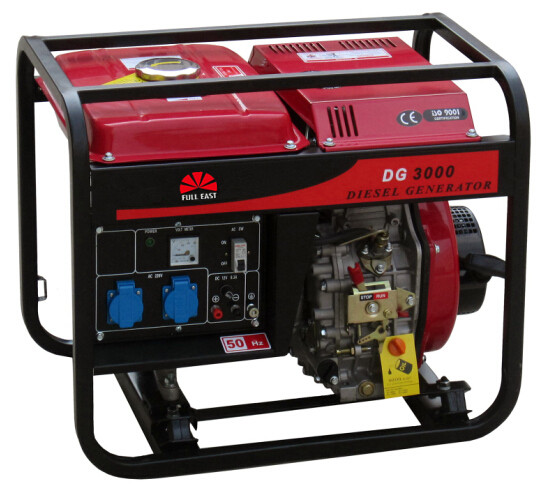

3kw Diesel Generator
- Model: DG3000
- Frame Type: Square Frame Type
- Generator Type: Open Type
- Product description: ♦ Circuit breaker protects overload operation. ♦ Emergency low oil alert warn the low lube oil level.
Product introduction
| OPEN FRAME TYPE AIR COOLED DIESEL GENERATOR | ||
| Model | DG3000 | |
| Generator | Frequency（HZ） | 50/60 |
| Max.output （kw） | 2.8 | |
| Rated output（kw) | 3 | |
| Rated.AC voltage（V） | 110-240 | |
| Power factor（cos￠） | 1 | |
| DC output (V) | 12V/8.3A | |
| Phase | Single phase | |
| Alternator type | Self-excited,2-pole, Single phase alternator | |
| Starting system | Recoil or Electric | |
| noise level(at 7m) | 80-85 | |
| Fuel tank capacity（L） | 12.5 | |
| Continuous work (hr) | 9.7 | |
| Engine | Model | 178F |
| Engine type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Power Output (HP) | 6HP | |
| Bore×stroke（mm) | 78×62 | |
| Displacement (cc) | 296 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication oil volume(L) | 1.1 | |
| Combustion system | Direct Injection | |
| Standard feature | Voltmeter | yes |
| AC Output Socket | 2 | |
| Ac circuit breaker | yes | |
| DC output | yes | |
| Oil warning light | yes | |
| Oil alert | yes | |
| AVR(auto voltage regulator) | yes | |
| Optional feature | Calculagraph | Optional |
| Three phase voltage | Optional | |
| Current meter | Optional | |
| ATS | Optional | |
| Remote control | Optional | |
| Welding | Optional | |
| Dimension | Dimension (L×W×H)(mm) | 700×480×590 |
| Net weight (kg) | 64 | |
| 20FT | 130 | |
